FinlandWhat is slew drive?
Slew drive is complete ready-to-install unit of slewing ring for transfer of axial and radial forces as well as tilting in a enclosed steel housing.
Tracking precision
Applications that needs great precision and absolute reliability. Precision starting from only 0.10 degrees.
Limitless slewing range
Endless 360-degree rotation without any restrictions. Smooth movements, no stick or slip effect.
Standard models
From small 177.8 mm (7") all the way to up large 533.4 mm (21") raceway diameters.
Slew drive applications
There are limitless possibilities were slew drives can be used and also improve functionality and usability of existing equipment to whole new level. To give you idea what kind of industries they're used on daily basis, here are some examples of where slew drives are commonly utilized.
Standard hydraulic slew drive models
The standard model's screw and ring gear are made from a proprietary steel materials. Recommended greasing interval depends on the application between 50 - 500 hours. The operating temperature of the slew drive should be between -30 and +60 Celsius. Operating outside of recommended temperature range may damage the components.
Here are currently available standard slew drive models that you can order and make your project even more versatile.

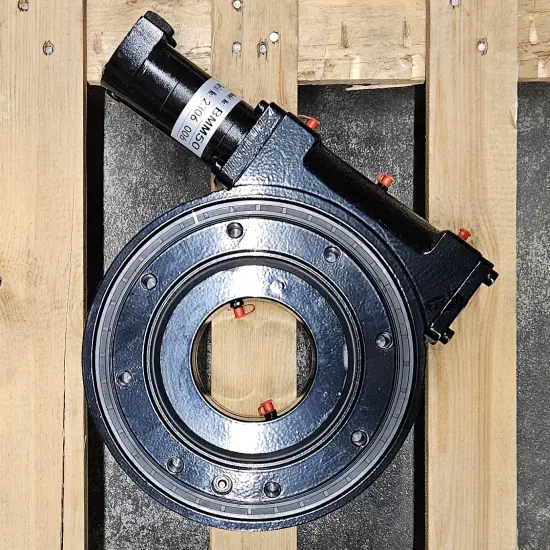

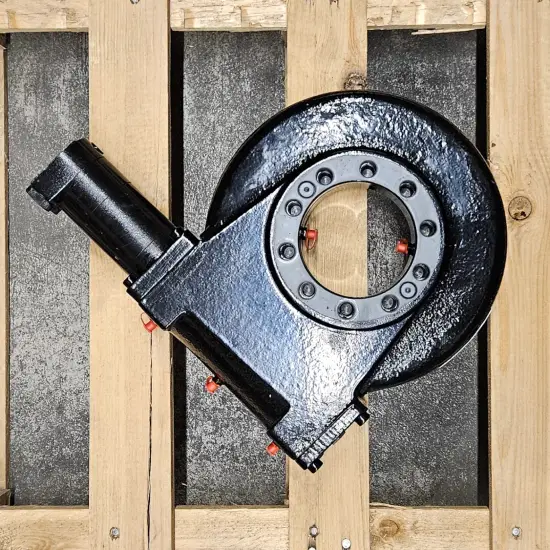

MSE7 slew drive
The smallest available hydraulic slew drive MSE7 that still packs a punch. This is for your projects where weight is needed to be light as possible for example mounted at the end of the tractor boom.
- Nominal torque : 1095 Nm
- Tilting moment (max.) : 14.2 kNm
- Holding torque : 10.4 kNm
- Axial load (max.) : 133 kN
- Radial load (max.) : 53 kN
- Transmission ratio of worm gear : 73:1
- Tracking precision : ≤ .15°
- Slewing speed : ~ 2.5 - 10 rpm *
- Weight : 26 kg
This product includes hydraulic motor: Model BMM50 [50.3 cm3/rev.], connections 3/8" G. Mounting: 4-bolt flange mounting, keyway shaft: 16mm
* Slewing speed depends on the load and given flow. Recommended speed is 2.5 rpm. Faster speeds may prematurely wear the components.

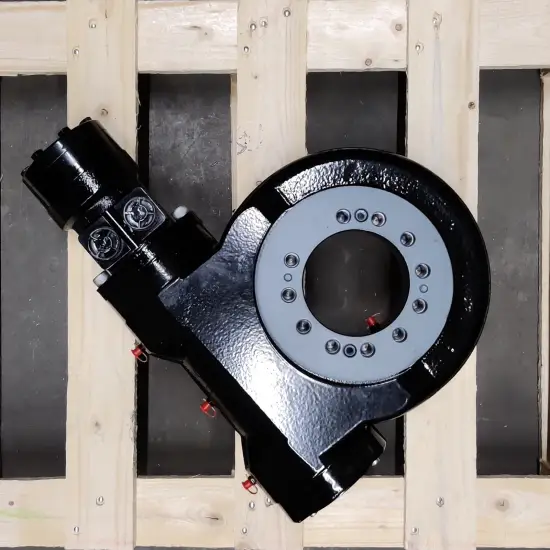

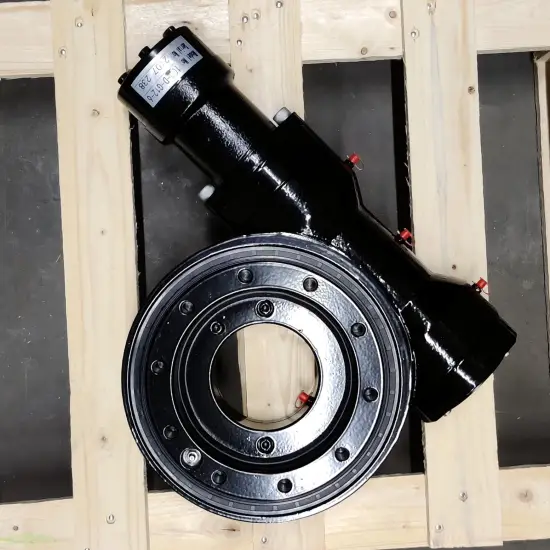

MER7 slew drive
Small hydraulic slew drive MER7 is for your projects where limited mounting space and static or dynamic loads aren't too much.
- Nominal torque : 3059 Nm
- Tilting moment (max.) : 14.2 kNm
- Holding torque : 20 kNm
- Axial load (max.) : 220 kN
- Radial load (max.) : 90 kN
- Transmission ratio of worm gear : 47:1
- Tracking precision : ≤ .15°
- Slewing speed : ~ 2.5 - 10 rpm *
- Weight : 35 kg
This product includes hydraulic motor: Model BMR100 [100.8 cm3 /rev.], couplings 1/2" G. Mount: 2-bolt oval mount, SAE A - flange, shaft: 1" (25,4mm) SAE 6B, 6-slot shaft
* Slewing speed depends on the load and given flow. Recommended speed is 2.5 rpm. Faster speeds may prematurely wear the components.

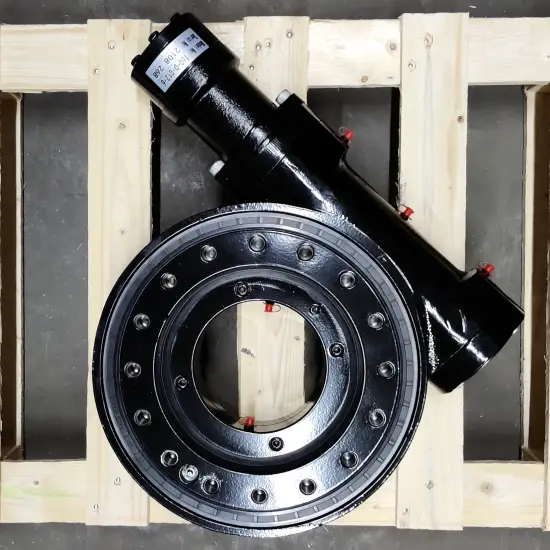

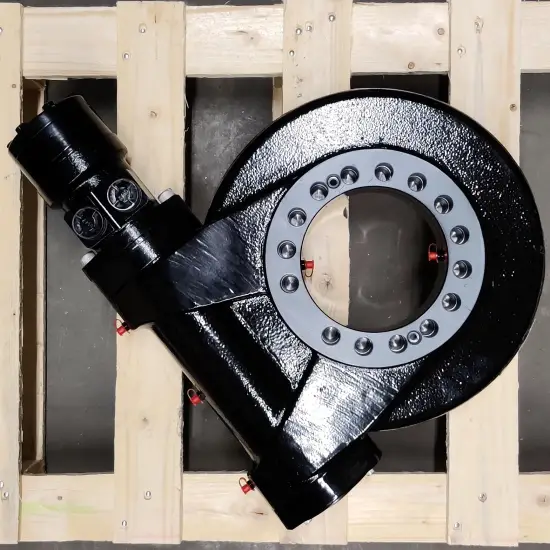

MER9 slew drive
Hydraulic MER9 is good for small to medium-sized welding positioners where loads to slew drive are heavier and more torque is required.
- Nominal torque : 4232 Nm
- Tilting moment (max.) : 35.6 kNm
- Holding torque : 38.7 kNm
- Axial load (max.) : 578 kN
- Radial load (max.) : 215 kN
- Transmission ratio of worm gear : 62:1
- Tracking precision : ≤ .15°
- Slewing speed : ~ 2.5 - 7 rpm *
- Weight : 53 kg
This product includes hydraulic motor: Model BMR160 [157.2 cm3 /rev.], couplings 1/2" G. Mount: 2-bolt oval mount, SAE A - flange, shaft: 1" (25,4mm) SAE 6B, 6-slot shaft
* Slewing speed depends on the load and given flow. Recommended speed is 2.5 rpm. Faster speeds may prematurely wear the components.

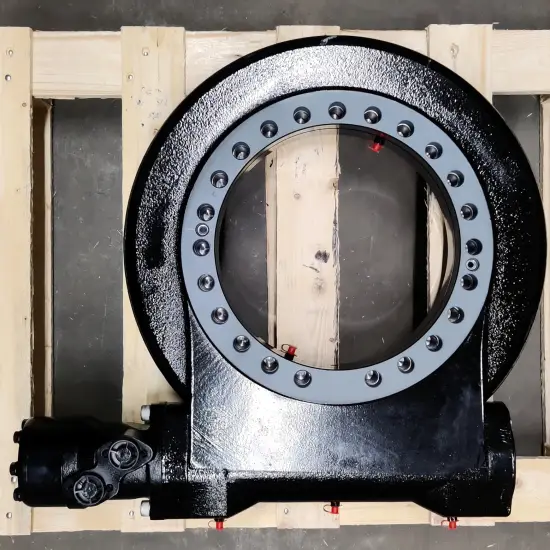

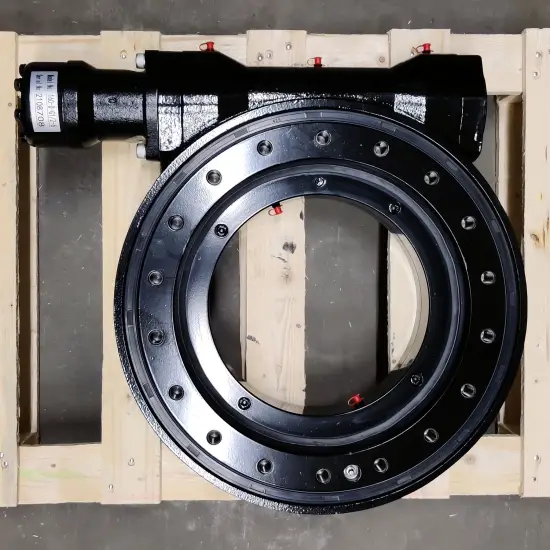

MER14 slew drive
Hydraulic slew drive MER14 is often used in rotating excavators tools, such as medium-sized buckets and forestry log grapple projects.
- Nominal torque : 5869.5 Nm
- Tilting moment (max.) : 71.2 kNm
- Holding torque : 48 kNm
- Axial load (max.) : 960 kN
- Radial load (max.) : 360 kN
- Transmission ratio of worm gear : 86:1
- Tracking precision : ≤ .15°
- Slewing speed : ~ 2.5 - 5 rpm *
- Weight : 67 kg
This product includes hydraulic motor: Model BMR160 [157.2 cm3 /rev.], couplings 1/2" G. Mount: 2-bolt oval mount, SAE A - flange, shaft: 1" (25,4mm) SAE 6B, 6-slot shaft
* Slewing speed depends on the load and given flow. Recommended speed is 2.5 rpm. Faster speeds may prematurely wear the components.

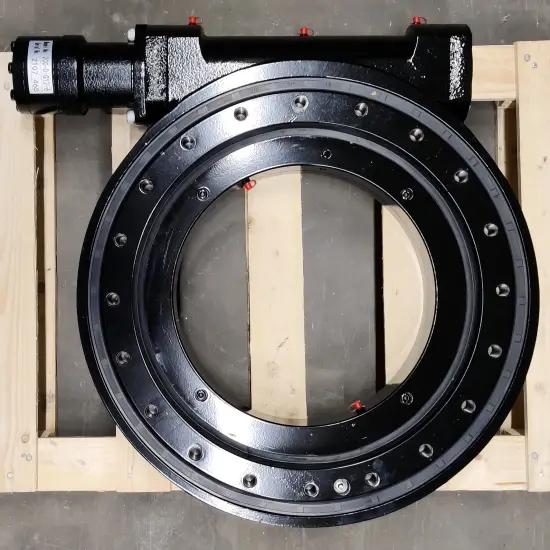

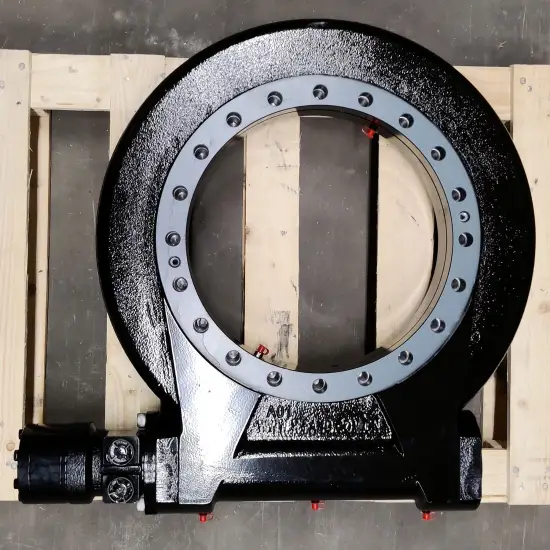

MER17 slew drive
From large to medium sized projects. Some of the MenSe Oy clients have used it on their forestry mulcher product lines. MER17 slew drive is solid choice for your projects.
- Nominal torque : 9464 Nm
- Tilting moment (max.) : 135.6 kNm
- Holding torque : 72.3 kNm
- Axial load (max.) : 1110 kN
- Radial load (max.) : 414 kN
- Transmission ratio of worm gear : 104:1
- Tracking precision : ≤ .1°
- Slewing speed : ~ 2.5 - 3.5 rpm *
- Weight : 96 kg
This product includes hydraulic motor: Model BMR200 [199.2 cm3 /rev.], couplings 1/2" G. Mount: 2-bolt oval mount, SAE A - flange, shaft: 1" (25,4mm) SAE 6B, 6-slot shaft.
Psst! Did you know there is dual hydraulic motor version available which has more power and torque? Check it out.
* Slewing speed depends on the load and given flow. Recommended speed is 2.5 rpm. Faster speeds may prematurely wear the components.

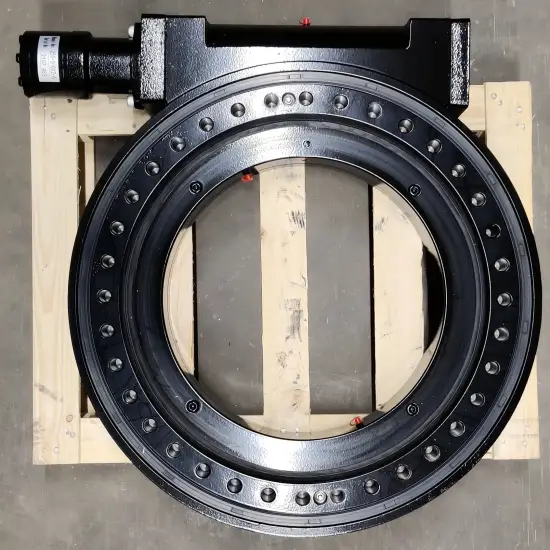

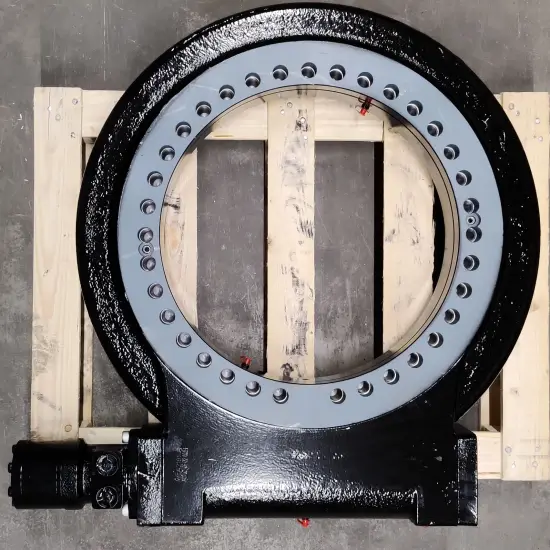

MER21 slew drive
The largest available slew drive model that's kept in stock. MER21 performance and durability is great for cranes where axial loads and tilting moments can be high at times.
- Nominal torque : 10458 Nm
- Tilting moment (max.) : 203 kNm
- Holding torque : 105.8 kNm
- Axial load (max.) : 1598 kN
- Radial load (max.) : 596 kN
- Transmission ratio of worm gear : 90:1
- Tracking precision : ≤ .1°
- Slewing speed : ~ 2.5 - 3 rpm *
- Weight : 180 kg
This product includes hydraulic motor: Model BMR250 [252 cm3 /rev.], couplings 1/2" G. Mount: 2-bolt oval mount, SAE A - flange, shaft: 1" (25,4mm) SAE 6B, 6-slot shaft
* Slewing speed depends on the load and given flow. Recommended speed is 2.5 rpm. Faster speeds may prematurely wear the components.
Can't find what're you looking for?
MenSe Oy offers a diverse range of slew drives tailored to meet the specific needs of your project. Whether you require larger, lighter, dual-drive, or electric models, we have the expertise to find the perfect fit for you. While custom orders may have longer delivery times than in-stock models, reaching out to MenSe Oy early ensures your project progresses without delay.
What might interest you

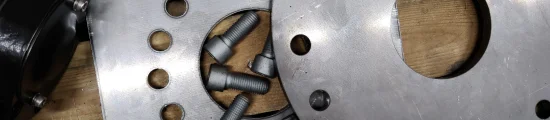

There is selection of different slew drive accessories to speed up your projects assembly even more.

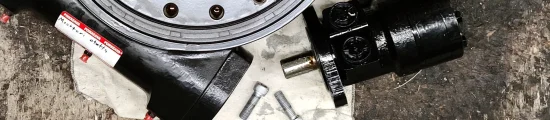

MenSe Oy keeps slew drive spare parts in the stock in case of component breakage to keep your work downtime minimal.Contact us
If you've any questions about slew drives, feel free to contact MenSe Oy via telephone or email.
